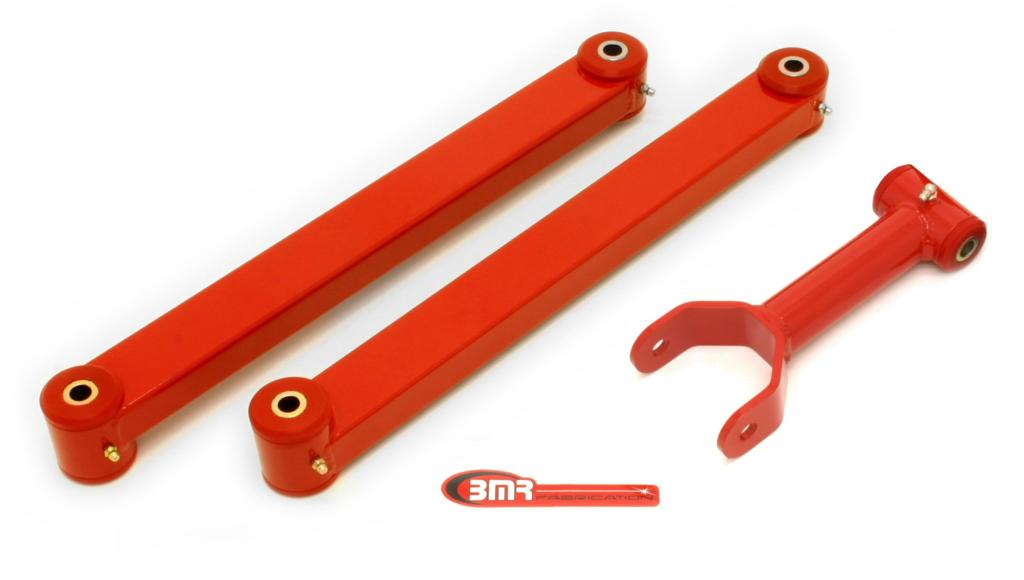

2005-2010 Mustang Rear Control Arm Package (Level 1) BMR

BMR TCA - 019     Lower control arms, boxed, non-adjustable, poly bushings
BMR UTCA - 017     Upper control arms, DOM, non-adjustable, polyurethane bushings

- Fits 2005-2010 S197 Mustangs
- Designed to the factory length
- High-durometer internally fluted polyurethane greaseable bushings
- TIG-welded 1x2-inch boxed steel tubing (lowers)
- MIG-welded 1 5/8-inch DOM steel tubing (upper)
- Dramatically reduces control arms flex
- Greatly reduces bushing deflection
- Improved Performance with acceptable NVH levels
- Designed for street performance, drag race, and road race applications
- Durable powder coat finish
- 2-3 hour installation time

Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR's polyurethane, non-adjustable upper and lower tubular control arms for S197 Mustangs (CAP001) are MIG- and TIG-welded using heavy-duty 1x2-inch boxed steel tubing (lowers) and 1 5/8-inch DOM steel tubing (upper). This design gives you strong control arms that greatly improve performance. Greaseable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

BMR Suspension designed the CAP001 to work well in street performance, drag race, and handling applications. The stock control arms flex under cornering loads giving you inconsistent handling characteristics. Combine this with soft bushings that have massive amounts of deflection and you're left with poor performance. The CAP001's heavy-duty construction eliminates control arm flex, giving you much improved repeatability on the street, starting line, or in the corners. BMR's polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. The bushings easily handle the high compression loads of hard launches and hard acceleration, yet offer plenty of articulation for great handling. These are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality.
